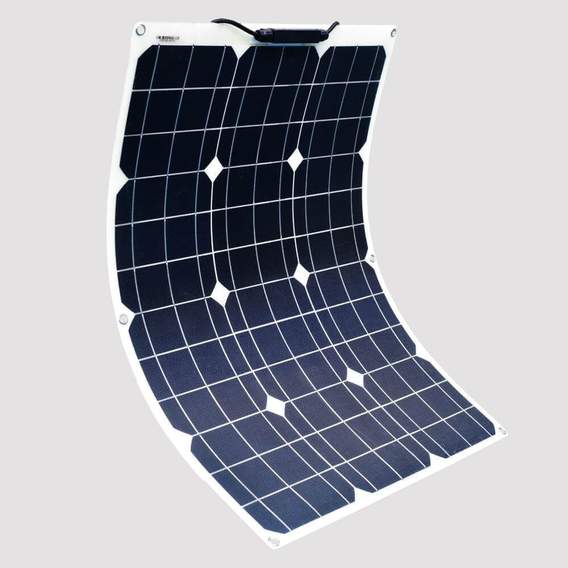

Solar 100W mono flexible panel(18V)

PRODUCTS > Solar Flexible Panel > Solar 100W mono flexible panel(18V)

Solar 100W mono flexible panel(18V)

    • 1
    • 2
    • 3
    • 4
Specification：

Maximum power(Pmax)       100W Output tolerance                    3% Maximum system voltage    700V DC Open circuit voltage(Voc)     19.2V Short circuit current(Isc)        6.87A Maximum power voltage(Vmp)   16V Maximum power current(Imp)   6.25A Cell efficiency            19.5% Operating temperature（NOCT）45±2℃ Temperature range         -20℃～+80℃ Number of cells                32pcs Weight                            1.9KG Size                       1050*540*3mm Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5
